Basic Info.
Model NO.
OB10
Anti-theft Standard
A
Part
Lock
Backset
60mm
Door Thickness Fits
35-50mm
Lock Cylinder Length
65mm
Usage
Household Door Locks
Transport Package
10 PCS/ CTN
Specification
ISO9001
Trademark
OEM or ODM or OUBAO
Origin
China
HS Code
85318010
Production Capacity
50000PCS /Year
Product Description
Way of unlock | Power on to lock(Fail safe) |
Operating Voltage | 12VDC (DC24V upon request) |
Start current | 450mA |
Standby current | 450mA |
Operating temperature | *-15 ºC~50 ºC |
Working humidity | 10%~90%RH |
Detection distance | 10mm |
Bolt | 304 Stainless steel 15mm throw |
Bolt strength | Polishing housing,800KG holding force |
Door opening angle | 180° |
Panel material | High strength aluminum alloy |
Special Designed | More than 500000 times |
Product Size | 203*34*40 mm |
Scope of application | Wooden door, Fireproof door, Glass door, Metal door |
Service life | More than 500000 times |
Weight | 0.63kg/PCS |
Packing quantity (PCS/CTN) | 40 |
Certifications |
Product Description
Overall features of Automatic Door Electric Bolt Lock:
▪The product works with the access controller to control the door. Be fixed on glass doors,wooden doors, iron gate and fireproof doors.
▪Suitable for: Wooden Door, Glass Door, Metal Door, Glass Door and other kinds of doors.
▪Security type: Automatically unlock the door when power off.
▪Easy to install and operate.
▪Specially designed, tested to 500000 cycles.
▪Pure copper coil, long service life,durable.
▪Superior Strength Aluminum Alloy, Solid Stainless Steel Bolt
Electr ic bolt locks are excellent value for securing doors and are connected to access control systems to facilitate key-less entries into secured areas. The design of solenoid bolt lock a allows the locks to be fitted horizontally or vertically into the doors or frames in a completely concealed manner.
Electric drop-bolt is especially designed for both out swing and in swing doors in max 180 degree.
The reed sensor automatically disconnect once the bolt is completely locked to avoid unauthorized access attempts.

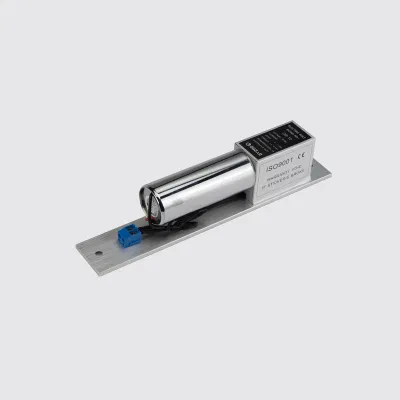

![DC 12V Bolts Narrow Door Electric Dead Bolt Lock Electric Drop Lock](http://img6.grofrom.com/www.zhuoshardwareco.com/226f3j00DAjozeOEfIbL/DC-12V-Bolts-Narrow-Door-Electric-Dead-Bolt-Lock-Electric-Drop-Lock.webp)

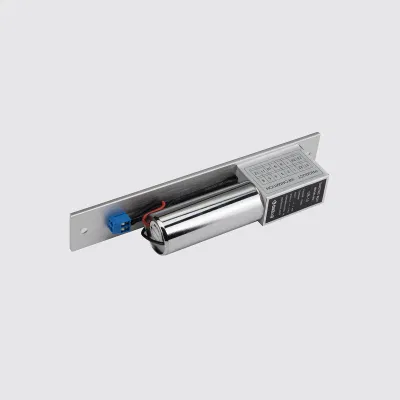

![DC 12V Bolts Narrow Door Electric Dead Bolt Lock Electric Drop Lock](http://img6.grofrom.com/www.zhuoshardwareco.com/226f3j00HJSognyCwDkL/DC-12V-Bolts-Narrow-Door-Electric-Dead-Bolt-Lock-Electric-Drop-Lock.webp)

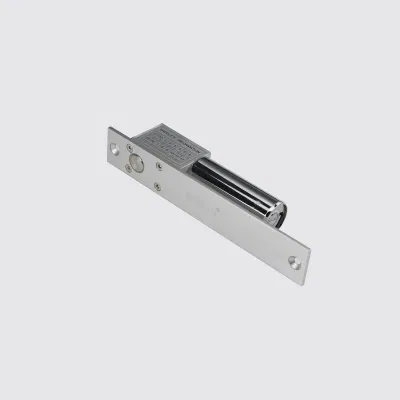

![DC 12V Bolts Narrow Door Electric Dead Bolt Lock Electric Drop Lock](http://img6.grofrom.com/www.zhuoshardwareco.com/226f3j00hdsortyWELcD/DC-12V-Bolts-Narrow-Door-Electric-Dead-Bolt-Lock-Electric-Drop-Lock.webp)

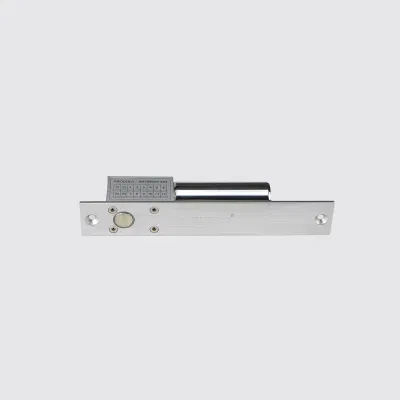

![DC 12V Bolts Narrow Door Electric Dead Bolt Lock Electric Drop Lock](http://img6.grofrom.com/www.zhuoshardwareco.com/226f3j00lmjqugOMlPkI/DC-12V-Bolts-Narrow-Door-Electric-Dead-Bolt-Lock-Electric-Drop-Lock.webp)
FAQ
Q: Do you accept OEM or ODM?
A: Yes, we accept OEM and ODM.
Q:What is the MOQ for each product?
A:For retail, we can do any quantity for you and they will be sent by express.
For wholesale,the MOQ usually is 300pcs.
You can also mix different items and we can ship them by sea together.
For detail pls contact us by Email or online talking.
Q: Can you send samples before placing an official order?
A: Yes of course.Our sample is free but the express need bear by you.
Q: How long is the warranty period?
A: We offer different warranty periods for different products ranging from 2-5 years.
