Fmc01 Magnetic Switch Contact Reed Type 5-30VDC IP67 with CE

Fmc01 Magnetic Switch Contact Reed Type 5-30VDC IP67 with CE from our factory. Quality assured, durable and reliable. Buy now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
FMC01
Protection Degree
IP67
Light Source
Red LED 630nm
Certificate
CE, RoHS
Working Temperature
-10~70c
Trademark
F&C
Origin
Hunan, China
Production Capacity
50000 Piece/Pieces Per Month

Product Description

F&C FMC01 Magnetic switch contact reed type 5-30VDC IP67 with CE

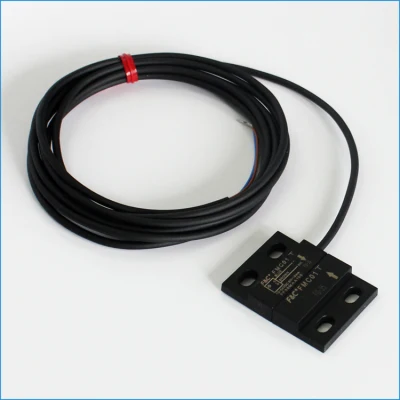

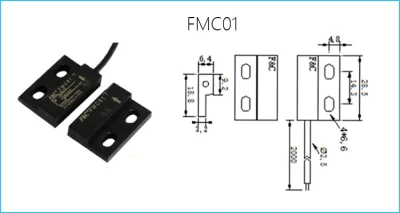

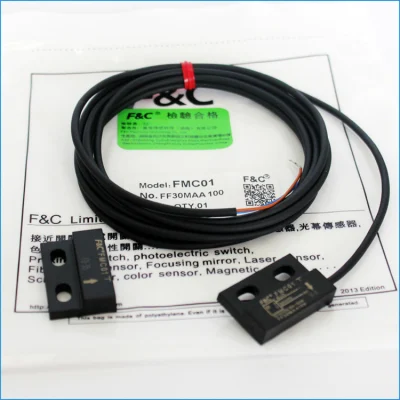

Product Picture

Fmc01 Magnetic Switch Contact Reed Type 5-30VDC IP67 with CE Fmc01 Magnetic Switch Contact Reed Type 5-30VDC IP67 with CE Fmc01 Magnetic Switch Contact Reed Type 5-30VDC IP67 with CE




Product Description

Project Specifications
Model

FD-02R FD-14R FD-32R

FD-03R FD-AL14R FD-39R

FD-06R FD-15R FD-40R

FD-07R FD-16R FD-72R

FD-AL07R FD-20R FD-73R

FD-11R FD-21R FMC01

FD-12R FD-31R FD-13R

FD-AL31R

FD-02N FD-14N FD-32N

FD-03N FD-AL14N FD-39N

FD-06N FD-15N FD-40N

FD-07N FD-16N FD-72N

FD-AL07N FD-20N FD-73N

FD-11N FD-21N

FD-02P FD-14P FD-32P

FD-03P FD-AL14P FD-39P

FD-06P FD-15P FD-40P

FD-07P FD-16P FD-72P

FD-AL07P FD-20P FD-73P

FD-11P FD-21P

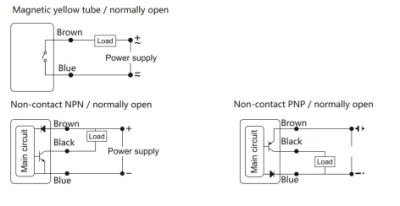

Shutter logic Normally open Electronic contactless: normally open Electronic contactless: normally open
Inductive switch form Contact reed type Non-contact transistor NPN Non-contact transistor PNP
Use voltage range 5~30VDC 5~30VDC 5~30VDC
Switching current ≤100mA ≤200mA ≤200mA
Maximum power capacity ≤3.5W ≤6W ≤6W
Internal consumption current NO ≤14mA at 24V ≤11mA at 24V
Residual pressure drop ≤2.5V at 10mA DC ≤2.5V at 10mA DC ≤2.5V at 10mA DC
Leakage current NO ≤0.01mA ≤0.01mA
Indicator light Red LED Red LED Green LED
Cable Ø2.8, 2C / grey oil-resistant PVC Ø2.8, 2C / grey oil-resistant PVC Ø2.8, 2C / grey oil-resistant PVC
Switching frequency 1000Hz 1000Hz 1000Hz
Applicable temperature range 10C~70C 10C~70C 10C~70C
Shock proof 30G 50G 50G
Vibration resistance 9G 9G 9G
Vibration resistance IP67 IP67 IP67
Vibration resistance NO Power polarity reverse
protection, surge absorption protection
Power polarity reverse
protection, surge absorption protection



Services



  • 24-hours online service is available here. Once you have any questions, just contact us and our professional staff will reply very quickly. Email, Skype, Whatsapp,Wechat or Online Message are acceptable.

  • Market information also will be provided. Since we are an experienced manufacturer of sensor, the market information about sensors will be offered as long as you need.The information of sensors that we provided is fully presented including product details, pictures, delivery and so on.
  • The warranty periodis 18 months.
  • If we send the wrong parts to you, free replacement will be available.
  • As for the installation of the parts if you have any questions, do not hesitate to contact us at any time.



  • Q:Are you sensors manufacturer?
  • A:Yes,over 30 years'experience in sensors filed.We can make some profit for you. Our product has CE certificate
  • Q:Can I get samples for test?
  • A:Yes,we support free test samples and shipping cost at your side.
  • Q: What's your leadtime?
  • A:Generally speaking,we have stocks for 110 kind of different models and can ship at any time. If we don't have stock,our leadtime is 5-7 working days.We will pull in the production schedule if your demand is urgently.
  • Q: What's your payment term?
  • A:You can pay us by T/T, Paypal, Westunion.
  • Q:How do you arrange the shipment?
  •  A: We normally ship by Fedex, UPS and TNT, we are VIP of this courier and get 60% discount. We also can accept other ship method if  there is an need.





Why Choose F&C



  • 23+ years manufacture and 10+ years OEM service sensor experience.
  • 4000+ models Sensors
  • Long service time, 8+ years
  • Fast delivery time. Most delivery within 1 days (Stocks)
  • IP67 protection grade
  • CE, RoHS certification
    Fmc01 Magnetic Switch Contact Reed Type 5-30VDC IP67 with CE Fmc01 Magnetic Switch Contact Reed Type 5-30VDC IP67 with CE

Fmc01 Magnetic Switch Contact Reed Type 5-30VDC IP67 with CE
