Basic Info.
Model NO.
MD1215LP
Certification
RoHS, FCC, CE, ISO9001
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Garage, Community
Working Principle
Electronically Controlled Lock
Function
Fail -Safe
Type
Electromagnetic Lock
Operation Voltage
12/24VDC Intermittent
Power Consumption
12VDC 1500mA
Holding Force
600kg
Cycle Rating
More Than 1,000,000
Operation Mode
Fail Locked
Max. Power on
1 Seconds
Dimensions
72mm*67mm*18mm
Certificate
CE, RoHS, FC, ISO9001
Service
OEM/ODM
IP Class
IP57
Transport Package
88mmx70mmx40mm
Specification
Steel with Chrome Plating
Trademark
eboxlock
Origin
China
HS Code
83013000
Production Capacity
10K Per Month
Packaging & Delivery
Package Size
12.00cm * 11.00cm * 7.00cm
Package Gross Weight
0.500kg
Product Description

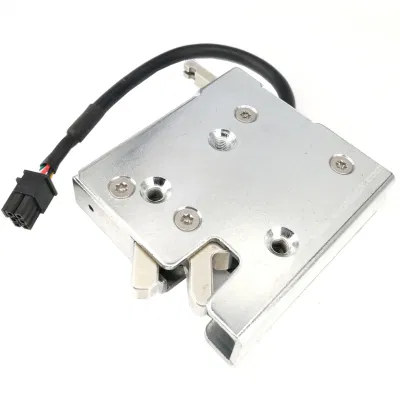

Electronic Cabinet Lock MD1220LSP is a high security access control solution for Retail Lockers and Vending Machines. Robust all metal construction allows MD series cabinet lock operates against heavy mechanical load. An optional built-in door sensor provides reporting of open/ close status and mechanical kits for manual override in case of power failure.
Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any access control system or standalone cabinet locking With easy push-to-close operation, the lock is designed with internal spring rod to push door open when electrified. It simplifies the access
control of enclosures in a wild variety of applications.
Features
- Superior heavy duty metal construction
- Steel with chrome plating
- Surface-mounted compact electric lock
- Convenient mechanical override enables manual release during power failure
- Operates against heavy mechanical load
- Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,
- Can be fitted to locker, mail box and drawers etc
Specifications
| Operation Voltage | 12VDC intermittent ±10% |
| Power Consumption | 12V DC 2000mA |
| Operation Mode | Fail Locked |
| Holding Force | 600KG |
| Maximum power on time | Less than 30 second |
| Solenoid | Rated for intermittence use |
| Cycle Rating | More than 1,000,000 times |
| Working Temperature | -20ºC ~ +60ºC |
| Dimensions LxWxH | 72mm*67mm*18mm |
| Gross Weight | 250g |
| Protection Class | IP57 |
| Compliance | CE and RoHs certificate |
Part No.
| Part No | Operating Current | Microswitch | Trigger Spring | Manual Override |
| MD1215 | 12VDC@1500mA | Without | 10N/25N | Hidden |
| MD1215S | 12VDC@1500mA | With | 10N/25N | Hidden |
| MD1215L | 12VDC@1500mA | Without | 10N/25N | Exposed |
| MD1215LS | 12VDC@1500mA | With | 10N/25N | Exposed |
| MD1220 | 12VDC@2000mA | Without | 10N/25N | Hidden |
| MD1220S | 12VDC@2000mA | With | 10N/25N | Hidden |
| MD1220L | 12VDC@2000mA | Without | 10N/25N | Exposed |
| MD1220LS | 12VDC@2000mA | With | 10N/25N | Exposed |
We offer customization for cable length and connector type to better meet the exact requirement of your application.
| Options for customization | ||||||
| Voltage | Current | Trigger Spring | Mounting holes | Material | Cable | Connector |
| 9V 12VDC 24VDC 48V | 1500mA 2000mA | 10N 25N 35N | M5x16 thread(standard) M5x25 thru | Steel (standard) Stainless steel | Twisted RVV Flat cable | Molex KF2510 PH RJ11 |
Applications
The electronic cabinet lock is ideal for various applications as following:
Electronic lockers for storage or delivery
Steel cabinet or metal furniture
Retail display cases and drawers
Filing cabinet
Utility cabinets and drawers
Key cabinet
Museum or retail product display cases
Pharmaceutical cabinets and drawers
Electronic mailbox and lock box
